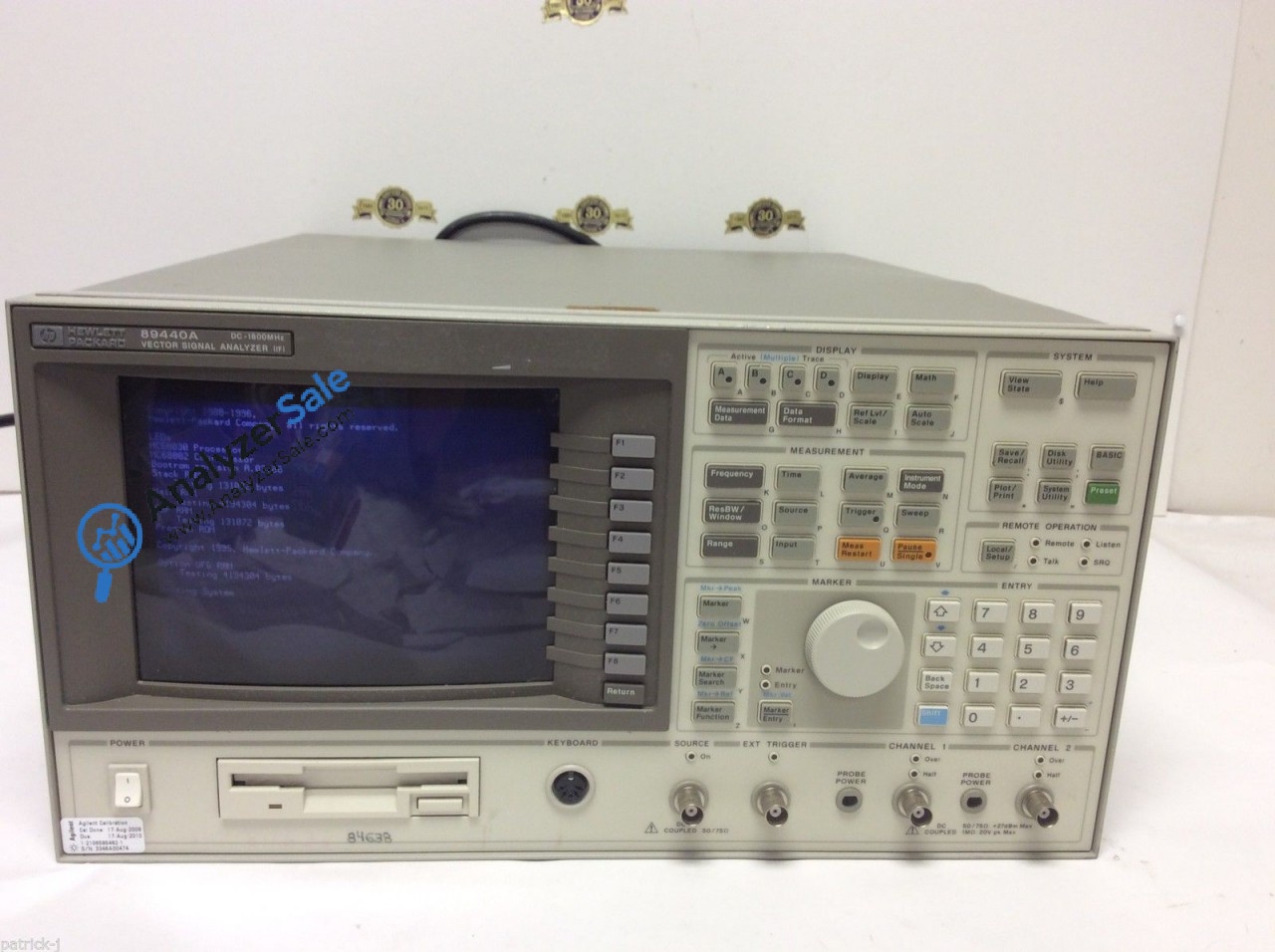

The Agilent HP 89440A Vector Signal Analyzer covers baseband through RF frequencies of dc to 1.8 GHz, in scalar and vector analysis modes. The scalar RF instrument mode allows full-frequency coverage in spans of 1798 MHz. Vector RF mode offers exceptional speed and additional signal processing for enhanced time-domain characterization and demodulation. Vector spans as wide as 7 MHz can be selected anywhere in the 1.8 GHz frequency range. In vector RF mode, both phase and amplitude characteristics are captured in the time-series data. This information can be processed for narrow resolution spectrum anaysis, AM/FM/PM demodulation, time-selective analysis, and may other types of mesurements.

Features :

• Frequency range: dc to 1.8 GHz
• Sensitivity: -145 dBm/Hz
• Maximum bandwidth: 8 MHz

Options:

• AY7 Second 10 MHz Input Channel
• AY9 Extended Time Capture
• UFG 4 Mb Extended RAM and Additional I/O
• AY8 Inteal RF Source
